Ubiquiti Dream Router 7 (UDR7) – 10G Cloud Gateway with Integrated WiFi 7

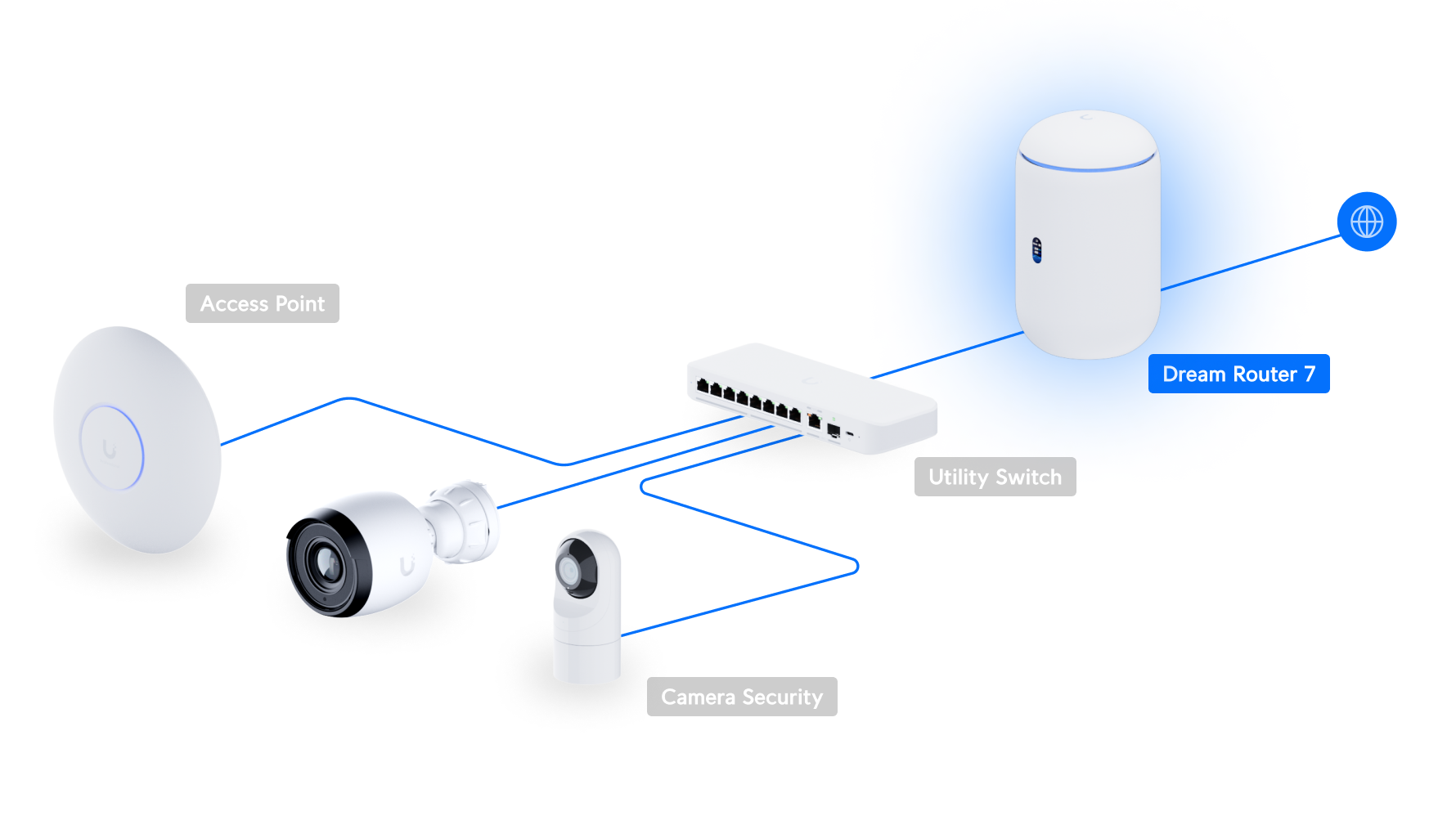

The Ubiquiti Dream Router 7 (UDR7) is a powerful all-in-one UniFi Cloud Gateway designed
for modern high-performance networks. It combines a WiFi 7 access point, 10G gateway,
PoE switch and UniFi application server into a compact desktop device.
With support for the full UniFi Application Suite, advanced security, enterprise networking
features and integrated storage for UniFi Protect, the Dream Router 7 is ideal for homes,
small businesses and professional network deployments.
This product features:
- Integrated WiFi 7 access point
- 10G Cloud Gateway with UniFi OS
- Built-in PoE switch for UniFi devices
- Supports UniFi Network, Protect, Access, Talk and Connect applications
- Supports 300+ simultaneous users
- Advanced security including IDS/IPS and content filtering
- Multi-WAN load balancing and failover
- Integrated microSD storage for NVR recording
- Compact desktop form factor
UniFi Application Support
| UniFi Network |
Supported |
| UniFi Protect |
Supported |
| UniFi Access |
Supported |
| UniFi Talk |
Supported |
| UniFi Connect |
Supported |
| Managed Devices |
30+ |
| Managed Cameras |
5 HD / 2 × 2K / 1 × 4K |
| Simultaneous Users |
300+ |
Networking & Ports
| WAN Ports |
1 × 10G SFP+, 1 × 2.5GbE RJ45 |
| LAN Ports |
4 × 2.5GbE RJ45 (1 PoE) |
| IDS/IPS Throughput |
2.3 Gbps |
| Coverage Area |
160 m² |
| MAC Address Table |
2,000 |
| Advanced NAT |
SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT |
| Dynamic Routing |
OSPF |
Integrated WiFi
| WiFi Standard |
802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7) |
| 6 GHz Throughput |
Up to 5.7 Gbps |
| 5 GHz Throughput |
Up to 4.3 Gbps |
| 2.4 GHz Throughput |
688 Mbps |
| MIMO |
2×2 MU-MIMO |
| Wireless Security |
WPA / WPA2 / WPA3 / Enterprise |
| Max BSSIDs |
4 per radio |
Hardware
| Processor |
Quad-core ARM Cortex-A53 (1.5 GHz) |
| System Memory |
3 GB |
| Storage |
64GB microSD (NVR) |
| PoE Budget |
15.4W |
| Power Consumption |
26W (excluding PoE output) |
| Power Method |
AC input 100–240V |
| Operating Temperature |
-10 to 40°C |
| Operating Humidity |
5–95% non-condensing |

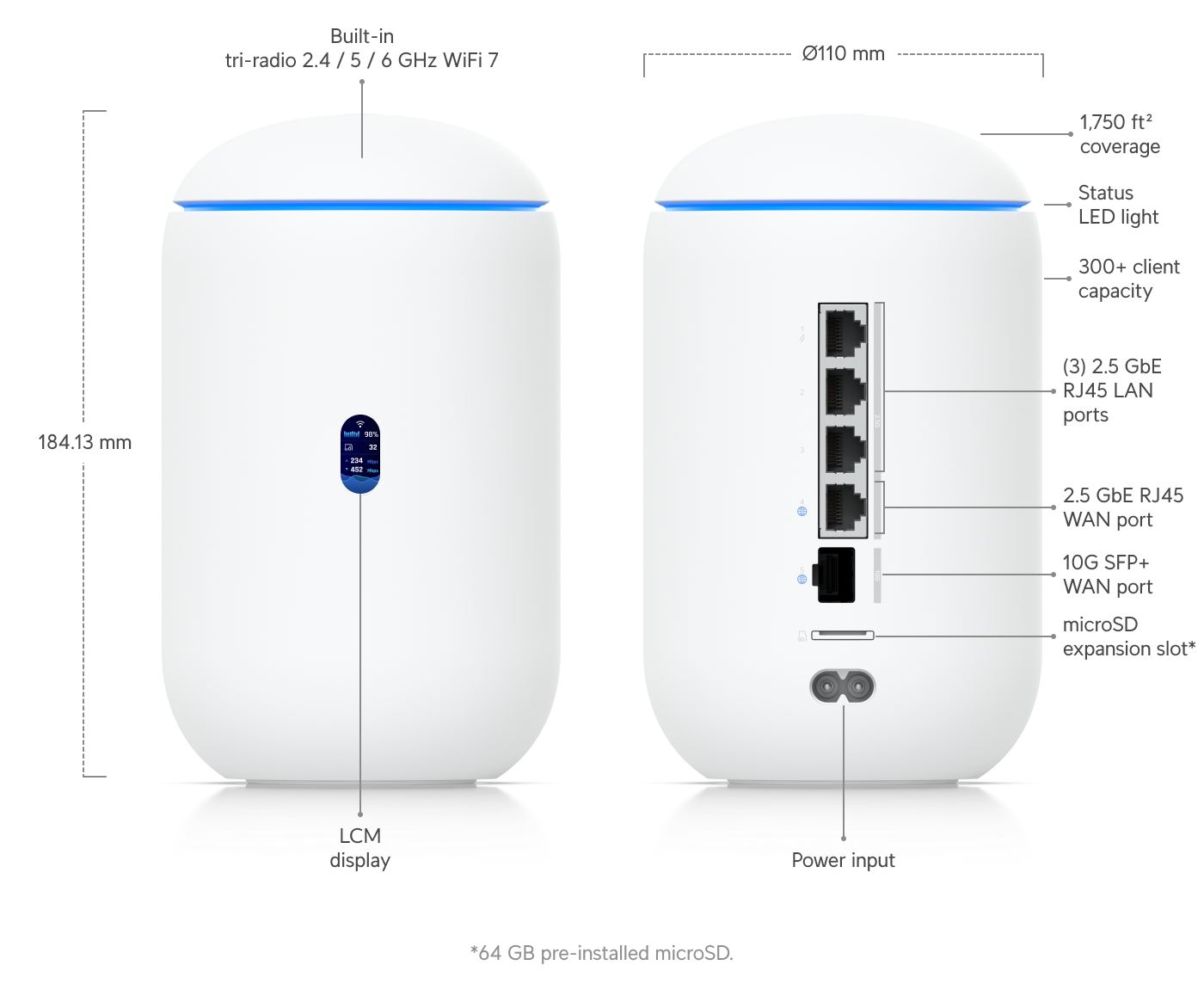

Physical Specifications
| Dimensions |
Ø110 × 184.1 mm |
| Weight |
1.1 kg |
| Enclosure Material |
Polycarbonate |
| Display |
0.96″ Status Display |
| Management |
Ethernet / Bluetooth |
| Certifications |
CE, FCC, IC |
